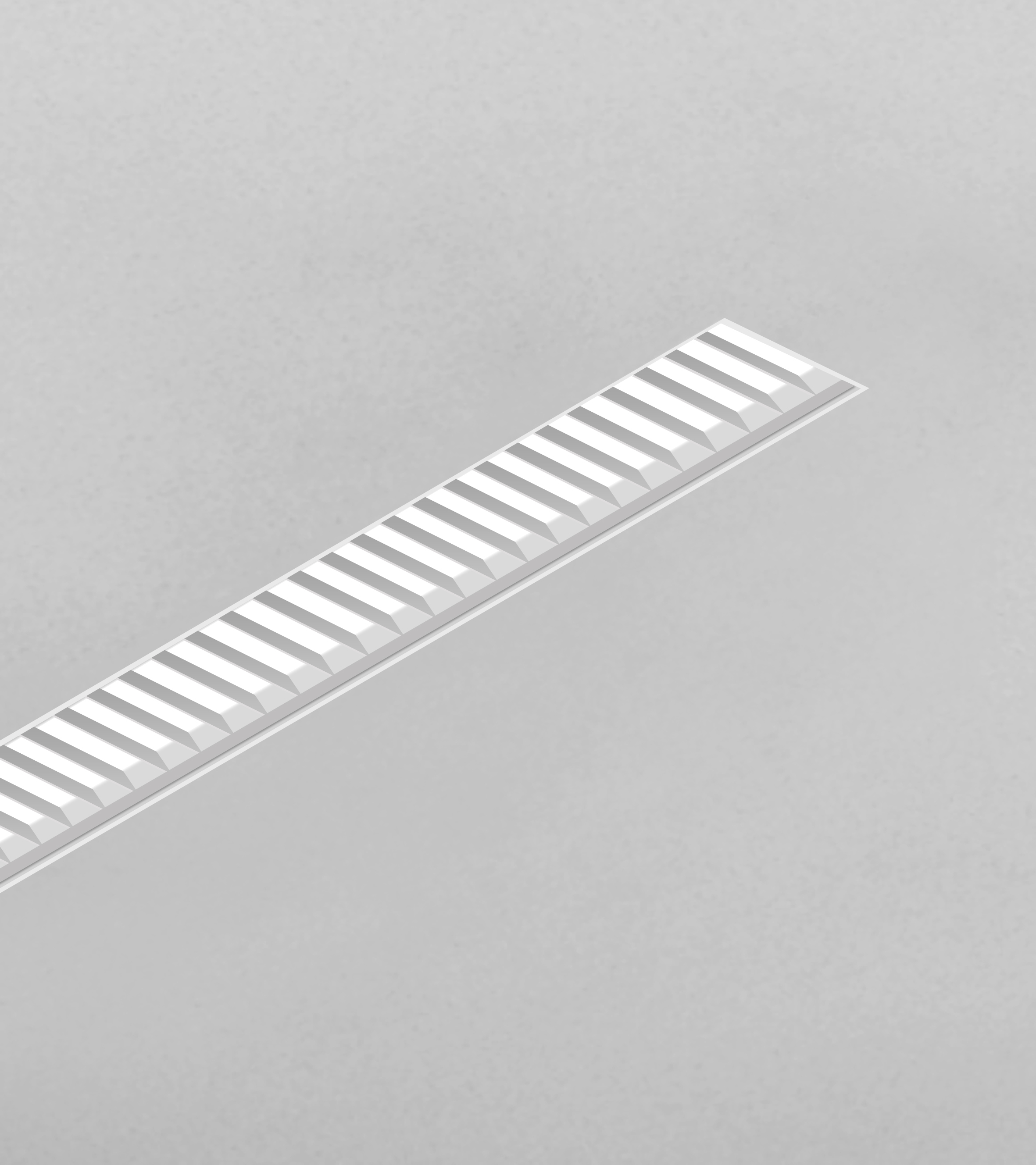

Belle 2 Recessed Louver

Belle 2 Recessed Louver

BEL2 | Direct Architectural LED Linear
Contact for Pricing
FEATURES SPECIFICATIONS
Belle 2 recessed is available in recessed mount. It is available in 2.3" width with 2ft, 3ft and 4ft lengths options, simply provide linear, powerful lighting to any atmosphere. This linear lighting features a streamlined linear form factor designed for maximum versatility. With their superior flexibility by wattage and CCT adjustable, Belle 2 recessed create a balance between esthetics, visual comfort and lighting performance, designed to meet the most demanding lighting challenges. It is architectural recessed lighting solution that compatible with most 15/16" And 9/16" T-grid ceiling or dry ceiling , widely used in office spaces, major retail stores, education, government, healthcare, and hospitality.
  • Trimless design or flange trim options
  • Application flexibility, T-grid or dry ceiling compatible
  • Continuous runs or custom pattern
  • Available in flush lens, micro reflector, louver and regressed lens
  • Available in 2ft, 3ft and 4ft, up to 1000lm/ft
  • Wattage selectable (50%/75%/100%)
  • CCT adjustable from 3000K, 3500K, 4000K
Size2.3inch width
Light SourceLED Static
LumensUp To 8400LM
CCT3000K, 3500K, 4000K
CRI80, 90
ListingUL, cUL, Damp Rated
Dimming Protocol0-10V
Reflector StyleLouver
FinishWhite
Mounting TypeRecessed
Voltage Rating110-277VAC
Fixture Length2ft, 3ft, 4ft Standard
