Rouge 8" Round Fixed
RGD SERIES | Retrofit & New Construction
Contact for Pricing
FEATURES
SPECIFICATIONS
Rouge LED commercial downlights have been upgraded 4th generation since
2013. Each engine works seamlessly with the all trims, making it truly
modular. It is the ideal way to upgrade virtually any existing incandescent,
CFL and HID commercial open frame rough-in section to high-performance
LED illumination in a matter of minutes. Light engine is mounted directly to
aluminum trim providing superior thermal management to ensure long life.
Spun aluminum reflector integrated with haze finish and white trim ring with
shadow free.
It is available in 6", 8" and 10" with up to 80w which is designed and
engineered for recessed applications, which is suitable for commercial and
public places, such as shopping mall, hospital, airport, hotel lobby, etc.
- UL, Energy Star and Damp Rated
- A smart design that one LED engine fits all trims
- 6", 8" and 10" size, 85lm/w, up to 80W
- CCT and wattage adjustable
- Twist-Lock Modular design

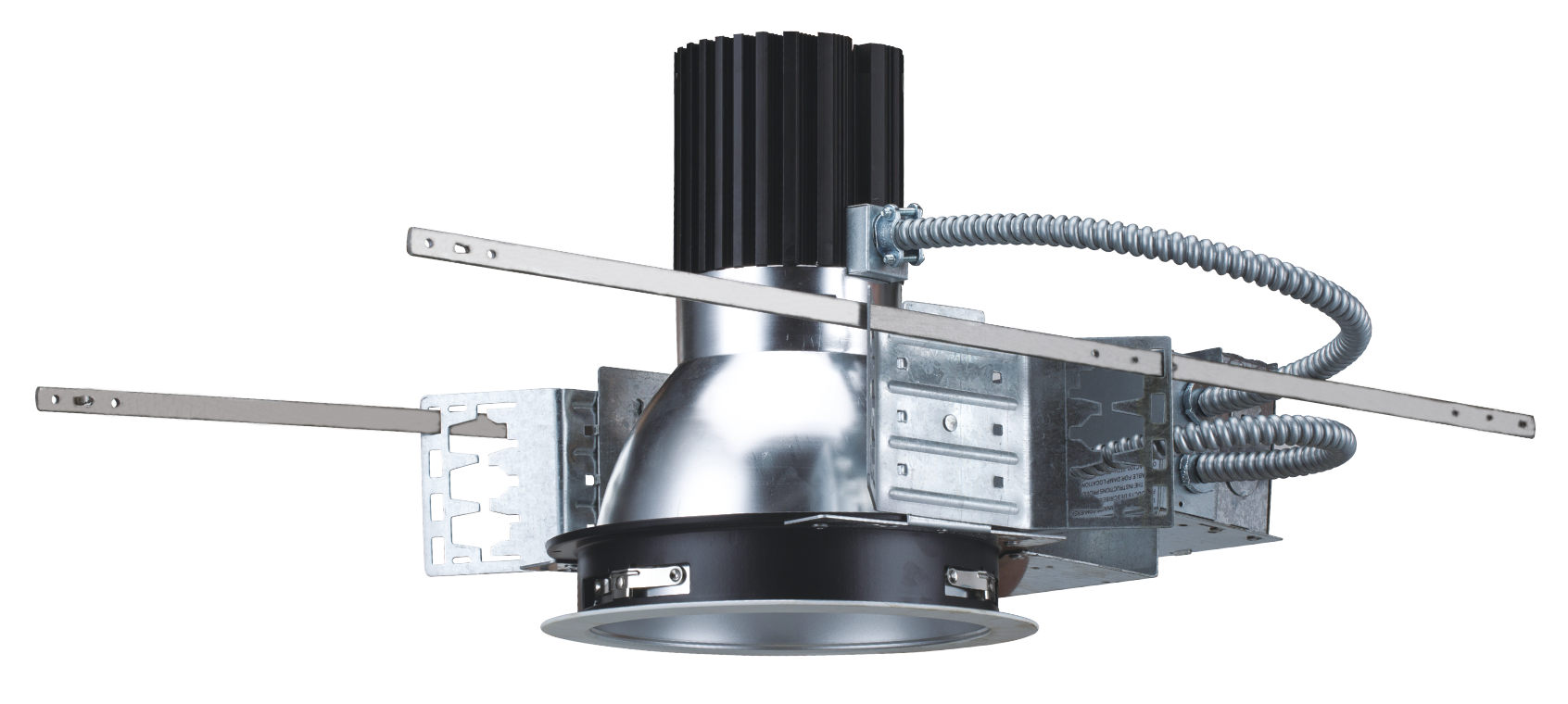

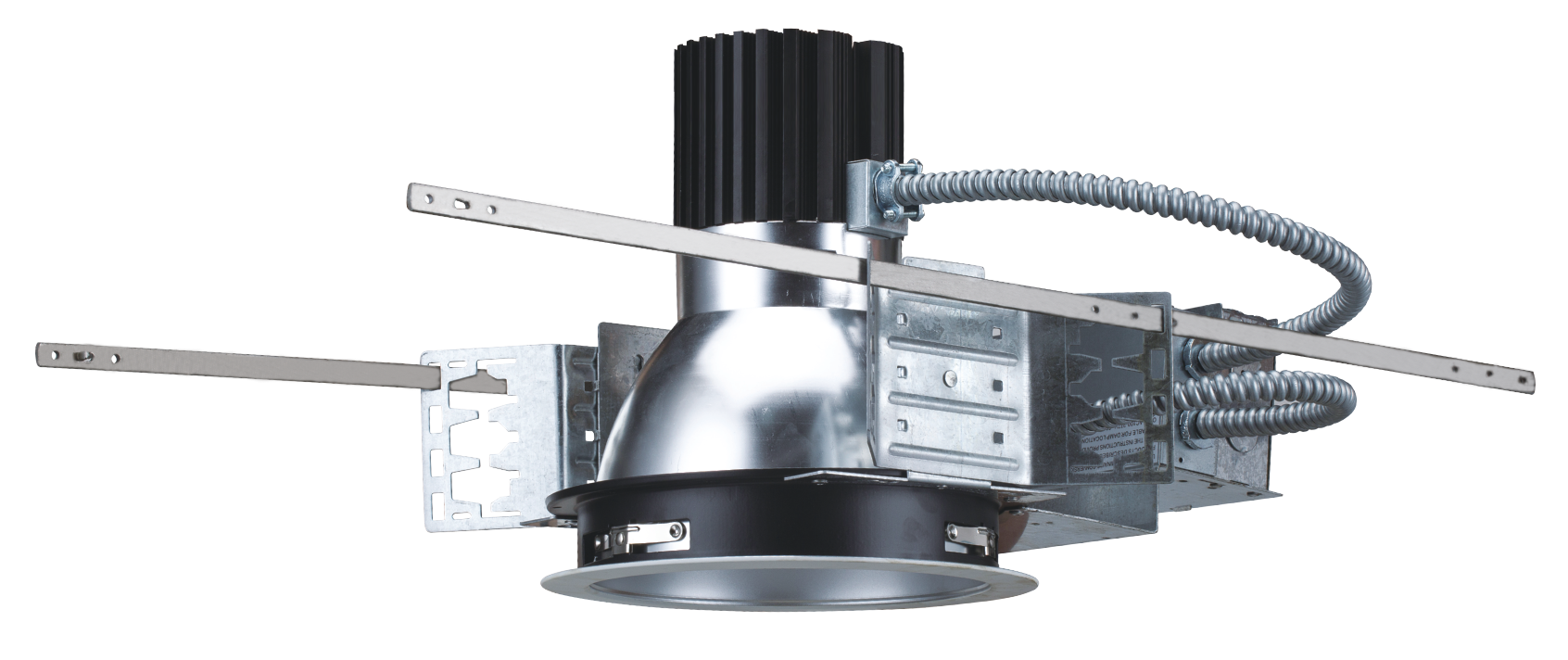

- New construction housing frame available
| Size | 8inch |
|---|---|
| Light Source | LED Static |
| Lumens | Up To 6800LM |
| CCT | 3000K, 3500K, 4000K |
| CRI | 80 |
| Product Type | Remodel, New Construction Housing |
| Listing | UL, cUL, Energy Star, Damp Rated |
| Dimming Protocol | 0-10V |
| Trim Style | Round Fixed |
| Color | Haze Reflector With White Ring |
| Mounting Type | Recessed |
| Voltage Rating | 110-277VAC |
| Fixture Wattage | 18W, 27W, 40W, 50W, 65W, 80W |
